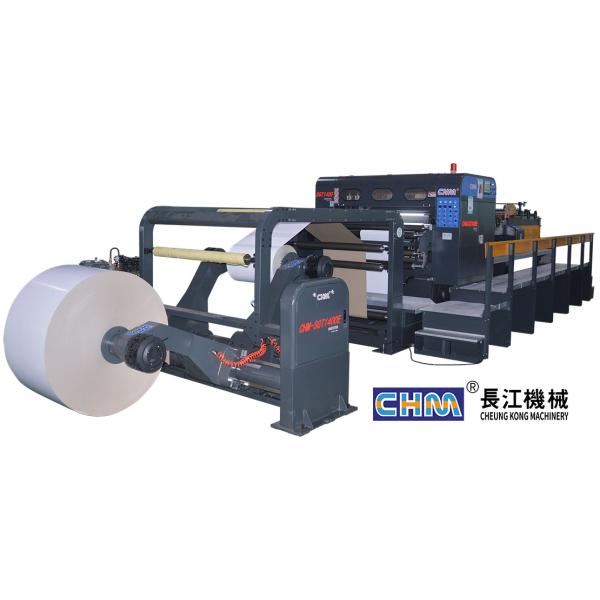

CHM-SGT1400E High Precision Synchronize-fly Sheeter for Paper Cutting
Key Specifications
| Attribute |
Value |
| Type of cutting |
Top blade and bottom blade rotary |
| Weight of paper |
200-1000 GSM |
| Reel diameter |
Max 1800mm(71") |
| Finished width |
Max 1400mm(55") |
| Finished sheet-Length |
Min.450-Max.1650 mm |
| Num.of rolls cutting |
2 rolls |
| Cutting accuracy |
±0.5mm(L<1000mm) ±0.1% (L≥1000mm) |
| Voltage |
AC380V/220Vx50Hz |
Product Overview
The High Precision Synchronize-fly Sheeter delivers fibre-less, clean cuts with exceptional dimensional accuracy. Ideal for processing board paper, art paper, kraft paper, and packing paper/board.
This advanced paper cutting machine incorporates technology from Taiwan and Britain, featuring:
- AC servo motor drive for fast, stable cutting operation
- German precision cutting knives for superior accuracy
- Intuitive touchscreen interface for easy operation
- Performance comparable to international equivalents
- Widely adopted by paper mills and printing facilities
Additional features include ink jet marking, automatic pallet change system, and automatic paper splicing system for complete automation that reduces labor requirements by 70%.
Technical Parameters
| Parameter |
Specification |
| Model |
CHM-SGT1400E |
| Max Speed of Cutting |
300 cuts/min |
| Max Cutting Speed |
300 m/min |
| Requirement of Air Pressure |
0.8 MPa |
| Total Power |
84 KW |
System Components
Hydraulic Shaft-less Unwind Station
Multi-disc Brake System

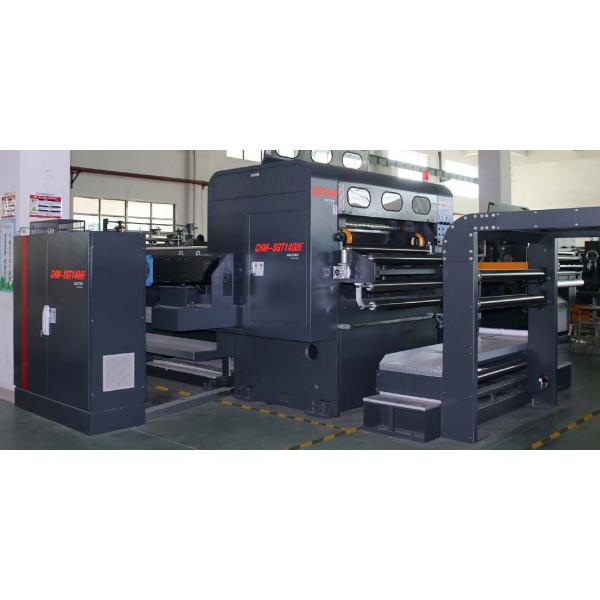

High Precision Synchronic-fly Cutting Unit
Conveyor Unit

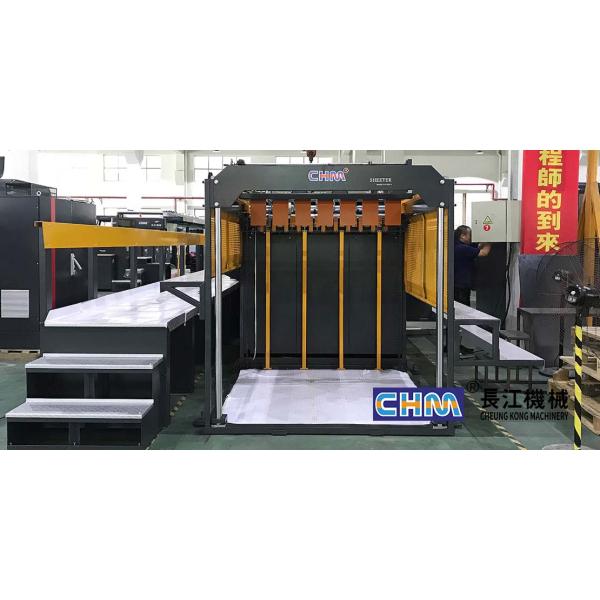

Auto Jogger System
Middle Slitting and Waste Edge Collecting System
Features adjustable slitting knife and exhaust tube for waste edge collection on both sides. Includes:
- Top slitter: Adjustable up/down with manual width adjustment
- Bottom slitter: Fixed position with manual width adjustment
- Motor-driven windmill mechanism
- Type-Y collecting pipe for waste edge

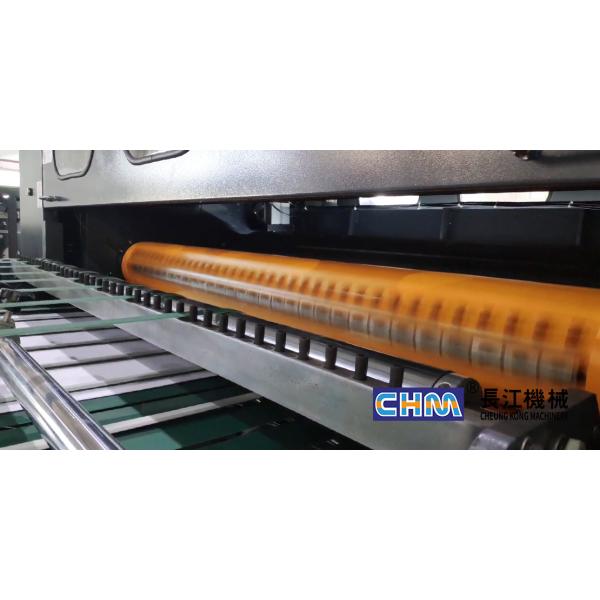

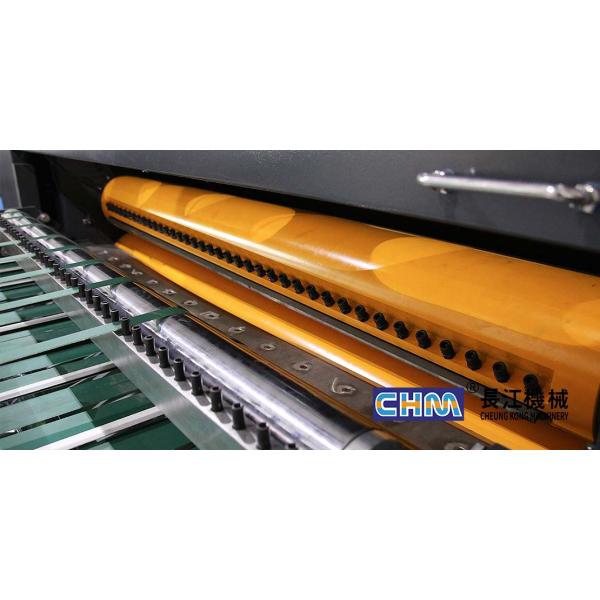

High Precision Single Rotary Sheet Cutter
- Top Tool Apron: Advanced cutting method reduces noise and load while extending knife life
- Bottom Tool Apron: Time-cast for enhanced stability
- Main driving roller: Grainy surface with air pressure control for secure paper grip
Auto-Squareness Adjustment System
British-style fixed Tool Apron design with touchscreen-controlled automatic paper squareness adjustment.
Static Eliminator System
Anti-static bar effectively removes static from sheets.

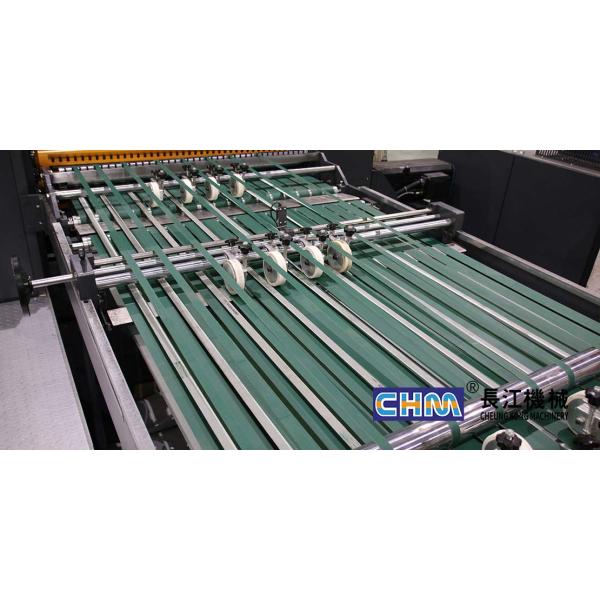

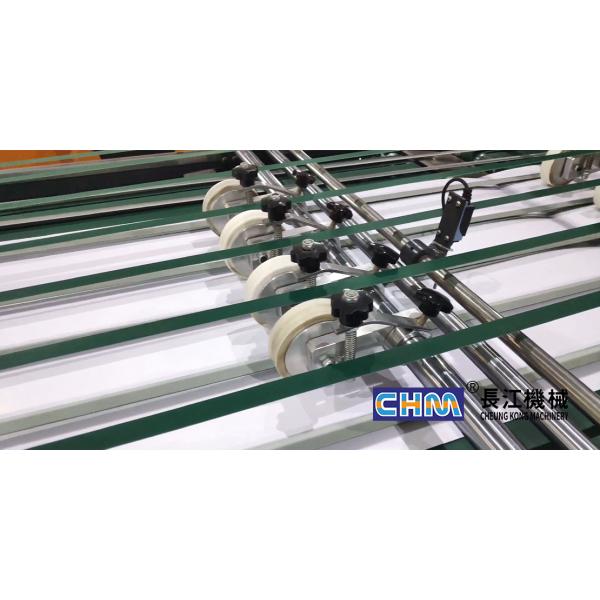

Paper Conveyer System
Multi-stage horizontal conveying system for efficient counting and piling, featuring:
- First stage: Rapid separation of cut paper
- Second stage: Tile-shaped conveyance at reduced speed with single/linkage control
- Integrated high-efficiency dust collection
Auto Counting and Label Inserting Device
Precision counting with automatic label insertion based on HMI input parameters, including defective product refill capability.
Driving Motor System
- AC servo motor for reclaiming blade
- AC motor for paper conveyor
- Inverter motor for secondary conveyor strap
- AC motors for stacker elevation, front jogger, and waste edge collection
Auto-tension Control
Computer-controlled automatic tension adjustment based on input paper roll diameter and weight parameters.
Auto-EPC (Edge Paper Control)
Precision sensing nozzle with fast detection of various web lines for accurate edge control.
Manufacturer Information
CHM Machinery specializes in paper sheeter machines and A4 production lines, with manufacturing roots dating back to 2004. Our three factories in Guangdong, Shandong, and Jiangsu span 140,000 square meters, establishing us as the world's second largest sheeting machine manufacturer with full independent production capacity.
With over 200 annual unit sales to 100+ countries, our equipment includes the pioneering single knife sheeter developed in 2006. Our professional R&D and after-sales teams support installations worldwide.
We can verify existing installations in your region and recommend the optimal machine configuration based on your specific paper type, gram weight, width, and production requirements.
Frequently Asked Questions
What advantages do your double-knife machines have?
Our machines offer exceptional stability with ±0.3mm cutting accuracy. Capable of processing paper from 65g to 800g, our fully automatic configurations significantly reduce labor while increasing production capacity.
Can you really achieve the claimed cutting accuracy?
Our extensive installation base confirms consistent achievement of ±0.3mm accuracy, with satisfied customers including ND Paper, Zhonghua Commerce, and leading paper mills in Pakistan and India.
Why choose CHM Machinery over other suppliers?
As China's original developer of paper sheeter machines and A4 production lines, we bring 21+ years of specialized experience. Our long-term customers and engineers with 15+ years of expertise demonstrate our commitment to quality and innovation.
How do you guarantee quality?
We implement rigorous pre-production sampling and final inspections before shipment to ensure consistent quality standards.
What kind of after-sales service do you provide?
All components carry a one-year warranty with lifetime maintenance support. Outside warranty periods, we provide spare parts and services at preferential rates with prompt response times.
